Power Distribution Consumer Unit

Model Number：TSM-6

① Monthly output capacity: 25 containers.

② We cooperate with multiple well-known brands, including Delixi, Weg, and Honeywell.

③ We provide customers with OEM and ODM services.

④ Delivery can be coordinated, with the shortest lead time being 15 days.

Inquire Now Recruiting Agents Next Product >

Introduction About Us Case FAQ Certifications Exhibition

Introduction

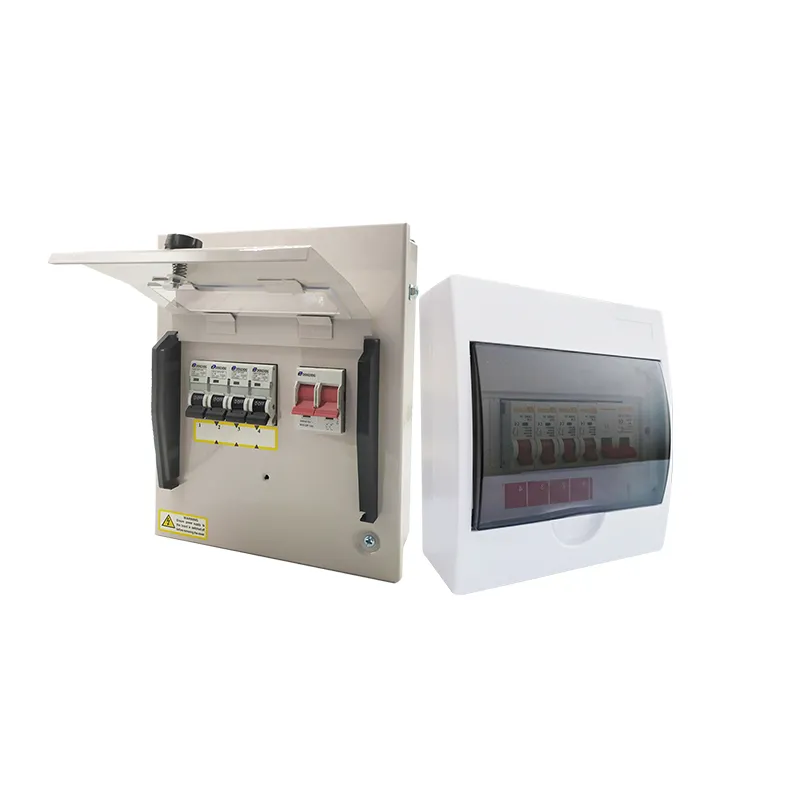

Plastic consumer unit, which is suitable for all kinds of residential houses, villas, residential areas, etc., and which is divided into surface and flush mounting installation, accords with the IEC 60439-3 international standard. The box body and panel are made of flame retardant ABS material. Its small circular arc door can open up to 90 degrees. Equipped with galvanized DIN rail and adjustable support, the depth of the DIN rail can be adjusted to install MCB and RCD of different sizes.

Consumer unit
Color	White
Specification	IEC61439-1
Max . Load	100A
Max . Voltage	230/400V,50Hz/60Hz
Degree of protection	IP40
Enclosure material	ABS

Products Description

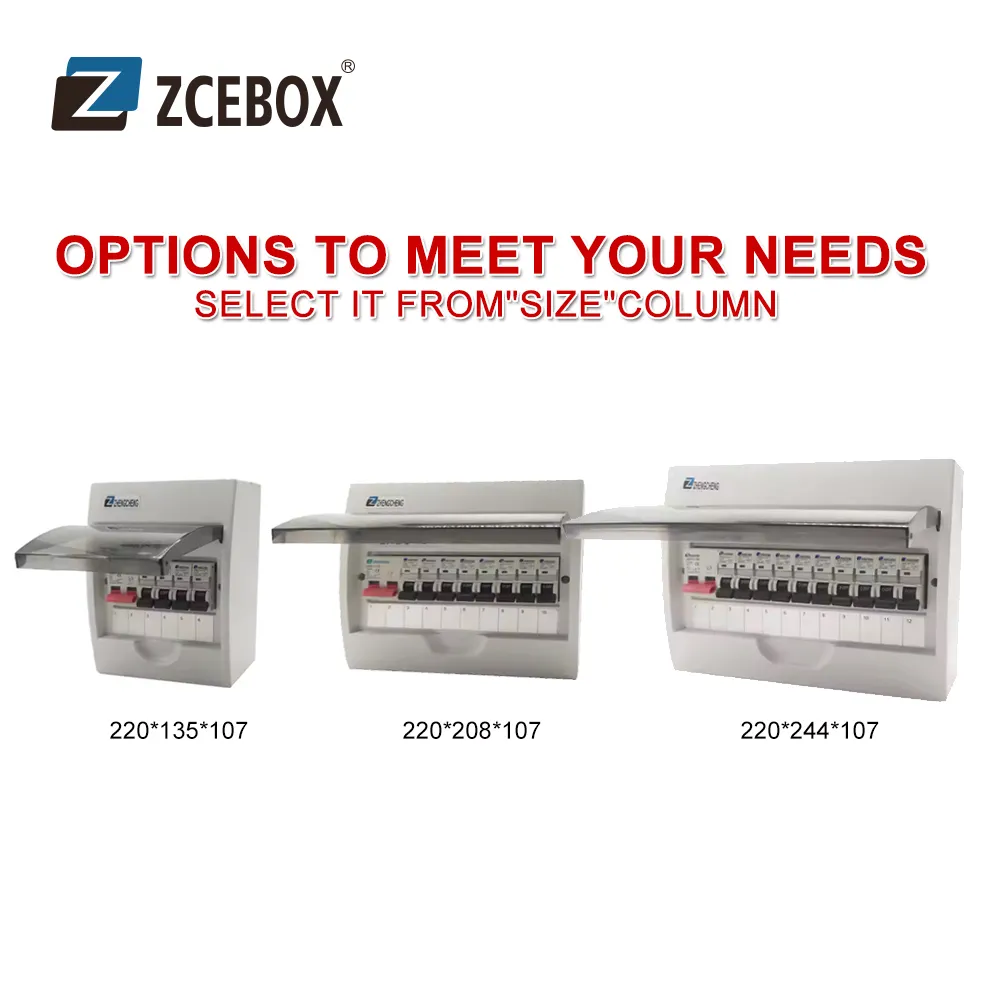

MCB Electrical Distribution Box Consumer Unit

Model	DB Box	2P 63/100A	1P 10A C65N	1P 16A C65N	1P 20AC65N	1P 25AC65N	1P 32AC65N	1P 50AC65N	1.2mmBus bar
TSM-2	6 way box	1PCS	1PCS	1PCS	-	-	-	-	1PCS
TSM-4	8 way box	1PCS	1PCS	1PCS	1PCS	1PCS	-	-	1PCS
TSM-6	10 way box	1PCS	1PCS	1PCS	1PCS	1PCS	2PCS	-	1PCS
TSM-8	12way box	1PCS	1PCS	1PCS	2PCS	2PCS	2PCS	-	1PCS
TSM-12	18way box	1PCS	2PCS	2PCS	2PCS	2PCS	2PCS	2PCS	1PCS

About Us


ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics, and produces distribution boxes, junction boxes, MCBs, and consumer units with professional OEM and ODM services.

We have a professional technical team to provide customers with customized production and related services.

Our products comply with the ISO9001 standard and have been approved by CE, ROHS, IK, and HF tests.
