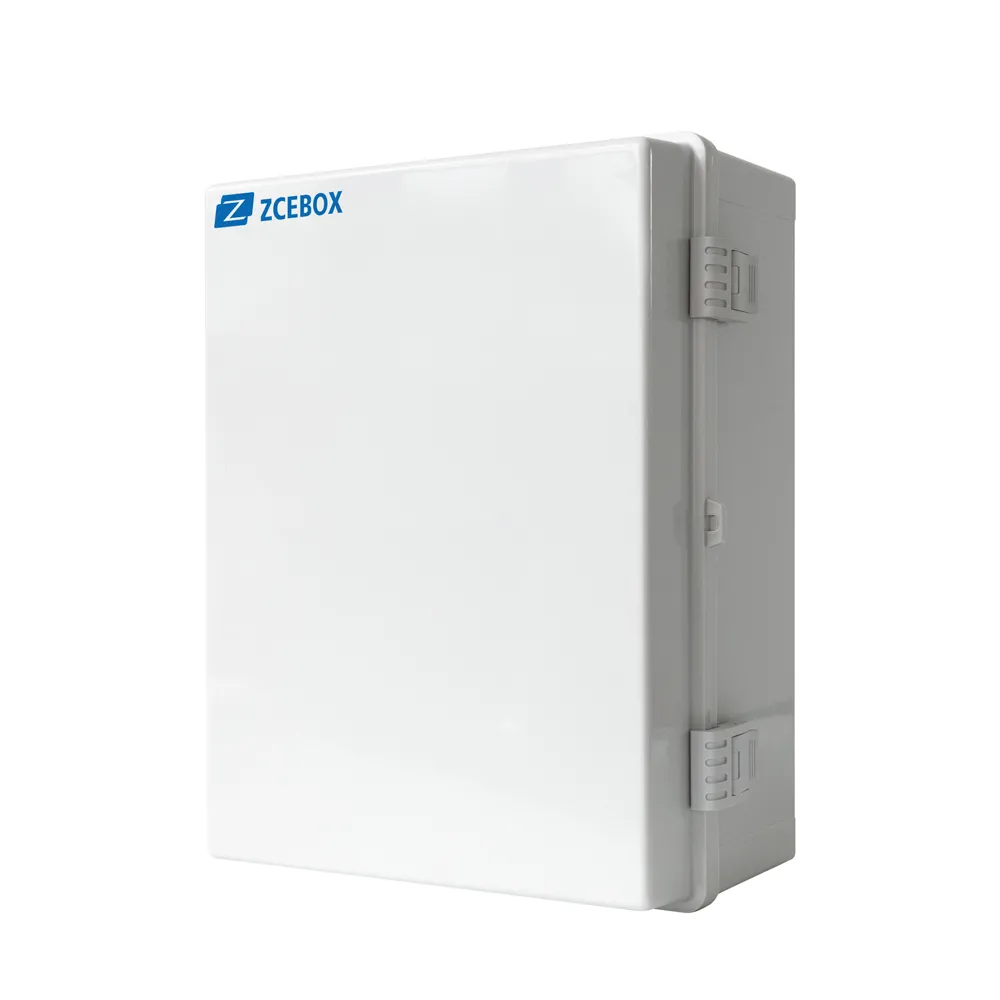

ZCEBOX LWHY IP66 Waterproof Junction Box

Product Overview

Professional Waterproof Electrical Enclosure for Outdoor Applications

The ZCEBOX LWHY Waterproof Junction Box is a professional electrical enclosure designed to protect cable connections, terminals and electrical components in outdoor and industrial environments.

Manufactured from high-quality ABS material, the LWHY series provides reliable protection against dust, moisture and water exposure with an IP66 protection rating.

It is widely used in CCTV surveillance systems, outdoor lighting projects, solar power installations, industrial equipment wiring, communication systems and building electrical applications.

With flexible customization capabilities, ZCEBOX provides OEM and ODM solutions for global distributors, contractors and electrical equipment manufacturers.

Product Highlights

1. IP66 Waterproof and Dustproof Protection

The LWHY series features a sealed enclosure structure designed to prevent dust penetration and protect internal electrical components from water exposure.

It is suitable for outdoor environments where reliable protection against weather conditions is required.

2. Durable ABS Plastic Housing

The enclosure is manufactured using high-quality ABS material, providing:

• Good mechanical strength

• Excellent electrical insulation

• Lightweight structure

• Corrosion resistance

• Long service life

3. Flexible Cable Entry Design

The junction box supports customized cable entry solutions according to different installation requirements.

Options include:

• Cable glands

• Knockout holes

• Customized openings

• Different wiring configurations

4. Wide Application Compatibility

The LWHY Waterproof Junction Box is suitable for:

• Outdoor electrical connections

• CCTV installation

• Security systems

• Industrial control equipment

• Solar applications

• Building wiring projects

5. OEM & ODM Customization

ZCEBOX provides professional customization services:

• Customized size

• Customized color

• Logo printing

• Structural modification

• Packaging customization

Technical Specifications

Model Number：LWHY 506022

① Monthly output capacity: 25 containers.

② We cooperate with multiple well-known brands, including Delixi, Weg, and Honeywell.

③ We provide customers with OEM and ODM services.

④ Delivery can be coordinated, with the shortest lead time being 15 days.

How to Choose the Right Waterproof Junction Box?

Selecting the correct junction box depends on:

1. Protection Rating

Different environments require different IP ratings.

• IP65:
  Suitable for general outdoor protection.

• IP66:
  Recommended for outdoor environments exposed to stronger water spray.

• IP67:
  Suitable for applications requiring temporary water immersion protection.

2. Material Selection

ABS Junction Box

Recommended for:

• General electrical installation

• CCTV projects

• Indoor and outdoor wiring

PC Junction Box

Recommended for:

• Higher impact resistance requirements

• Industrial environments

• More demanding applications

3. Installation Environment

Before selection, consider:

• Temperature range

• Humidity

• UV exposure

• Mechanical impact

• Chemical environment

Product Structure

Reliable Design for Electrical Protection

The LWHY junction box consists of:

ABS Enclosure Body

Provides mechanical protection and electrical insulation.

Sealing Gasket

Improves waterproof performance and prevents moisture penetration.

Mounting Structure

Allows easy installation on walls, equipment panels and outdoor structures.

Cable Connection Space

Provides sufficient internal space for cable routing and electrical connection.

Applications

Where Can LWHY Waterproof Junction Box Be Used?

CCTV Security Systems

Protects cable connections for outdoor surveillance cameras.

Outdoor Lighting

Suitable for:

• Garden lighting

• Street lighting

• Landscape lighting

• Building illumination

Solar Power Systems

Used for:

• Solar cable connections

• Photovoltaic installations

• Outdoor renewable energy equipment

Industrial Equipment

Suitable for:

• Automation systems

• Control cabinets

• Electrical machinery

• Factory wiring

Building Electrical Installation

Used in:

• Commercial buildings

• Residential projects

• Electrical distribution systems




IP65 vs IP66 Waterproof Junction Box Comparison

Installation Guide

How to Install LWHY Waterproof Junction Box

Step 1

Select a suitable installation location.

Step 2

Fix the enclosure using mounting screws.

Step 3

Install cable glands or cable entries.

Step 4

Connect internal electrical cables.

Step 5

Close the cover and check sealing performance.

Step 6

Perform electrical inspection before operation.

Quality Control

ZCEBOX Manufacturing Quality Assurance

Every ZCEBOX product follows strict quality control procedures:

Incoming Material Inspection

Check raw materials before production.

Production Inspection

Monitor:

• Injection molding quality

• Assembly accuracy

• Product appearance

Waterproof Testing

Verify enclosure protection performance.

Final Inspection

Check:

• Dimensions

• Appearance

• Function

• Packaging quality

Why Choose ZCEBOX?

Professional Electrical Product Manufacturer

ZCEBOX specializes in manufacturing low-voltage electrical products, including:

• Waterproof junction boxes

• Distribution boxes

• Consumer units

• Electrical enclosures

• Circuit protection products

With professional production capabilities, quality management systems and OEM/ODM experience, ZCEBOX provides reliable electrical solutions for customers worldwide.
