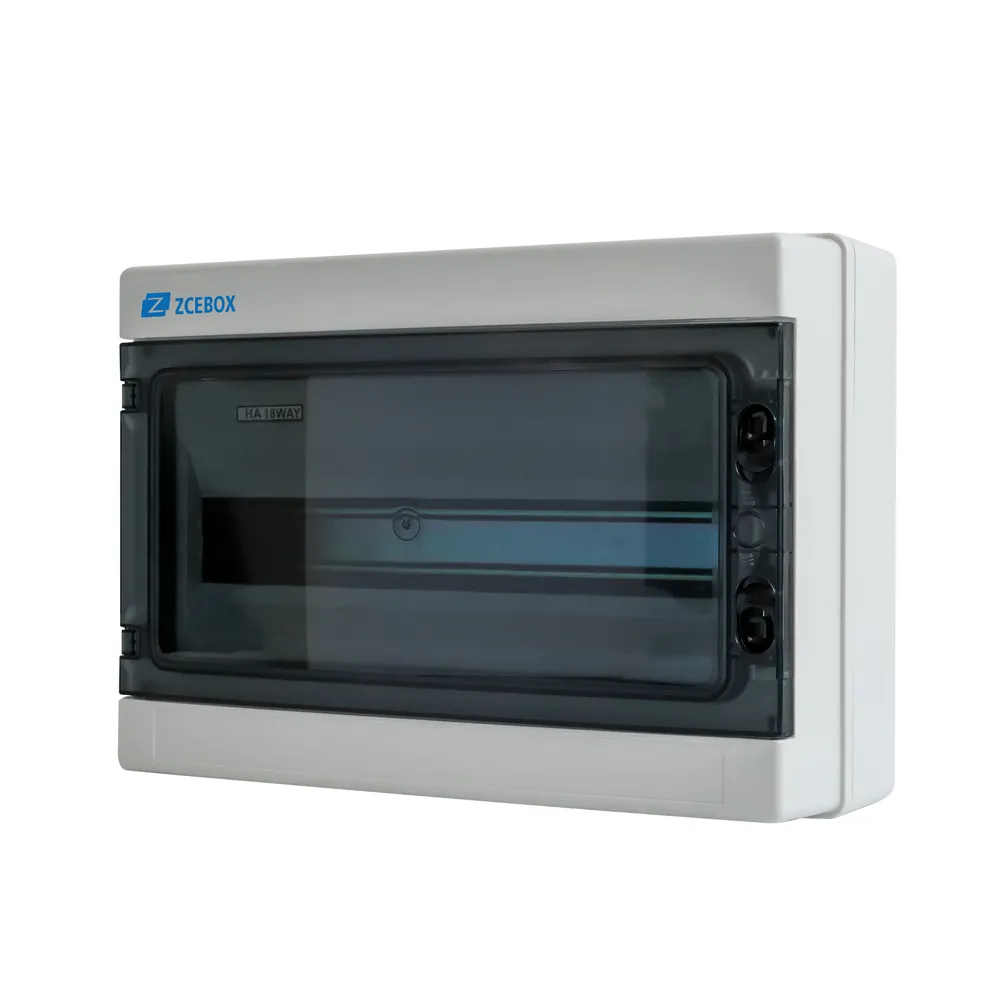

LWHA Customized Distribution Box
Model Number：LWHA-18
① Monthly output capacity: 25 containers.
② We cooperate with multiple well-known brands, including Delixi, Weg, and Honeywell.
③ We provide customers with OEM and ODM services.
④ Delivery can be coordinated, with the shortest lead time being 15 days.
Introduction
Made of strong ABS and PC materials, the enclosure has a beautiful appearance, high plasticity, and durability. LWHA series distribution boxes are suitable for terminal boxes, distribution panels, instrument boxes, electrical equipment boxes, and control boxes.
Products Description
| Waterproof Distribution Box LWHA | |
| Standard | IEC60439-3 |
| Approval | CE, RoHS,HF test,IK test,ISO9001 |
| Material | Box shell:ABS;Door:PC;Zerobar/earth bar:copper |
| Modules (No.) | 4；8；12；18；24 |
| Color of base | Gray |
| Protection grade | IP65 |
| Color of door | Transparent |
| Mounting type | Surface |
| Fire resistence | 650 °C/30s |
| Storage temperature | -40~+75°℃ |
| Ambient temperature | -5-+40°C,max. 50% humidity permitted under max +40°℃ |

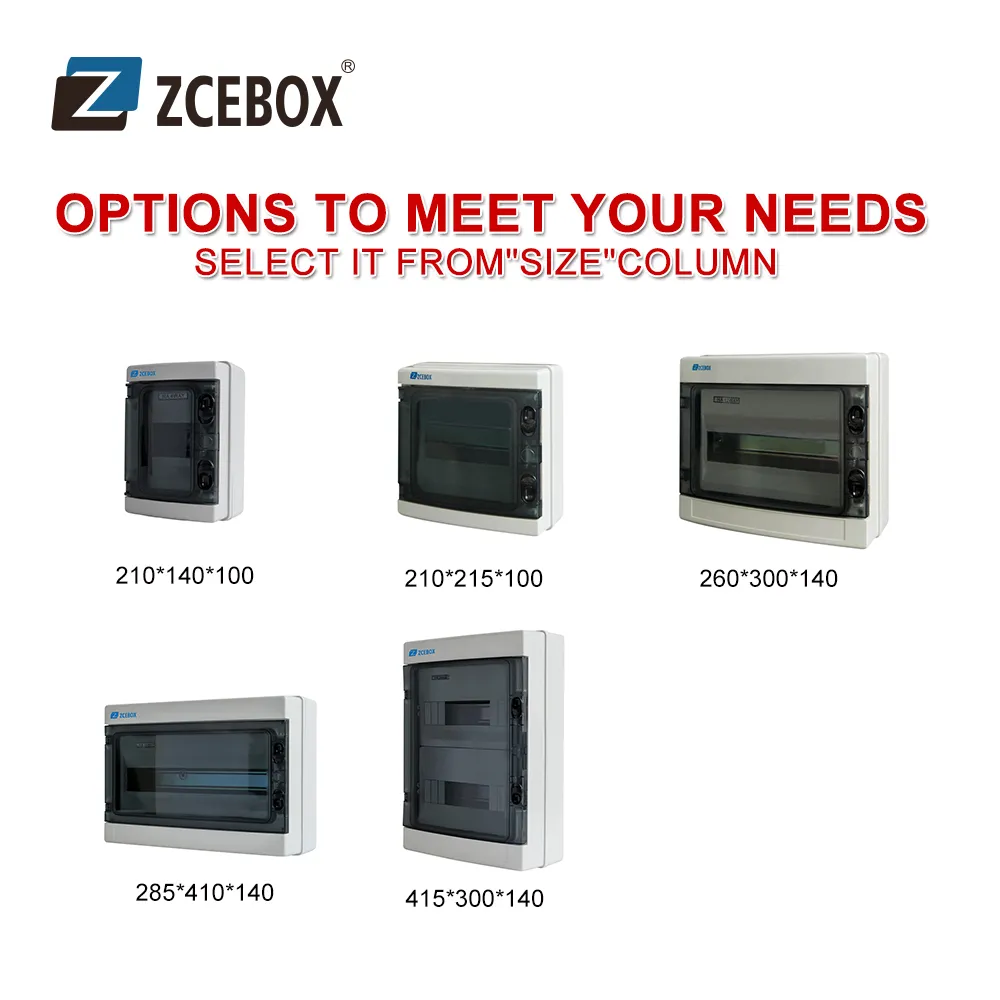

| Model | Din-rail (mm) | Terminal bar | (P)L*W*H (mm) | QTY/CTN | (C)W*H*D (mm) |
| LWHA-4 | 110 | 3+3 | 140*210*100 | 20 | 540*445*310 |
| LWHA-8 | 160 | 4+4 | 215*210*100 | 20 | 540*445*460 |
| LWHA-12 | 250 | 6+6 | 300*260*140 | 10 | 720*310*535 |
| LWHA-18 | 360 | 9+9 | 410*285*140 | 5 | 730*305*435 |
| LWHA-24 | 240 | 6+66+6 | 415*300*140 | 5 | 745*315*445 |
About Us
Why Choose Us
Certifications
Packaging&Shipping
Our Exhibition
Installation Case
Customize products for your project!
Get Questions
Frequently Asked Questions
Q: Are you a factory?
A: Yes, we are a factory.
Q: What are the main products of your company?
A: Our main products are complete sets of distribution boxes, waterproof distribution boxes, junction boxes, circuit breakers, etc.
Q: Which is the most cost-effective distribution box in your company?
A: The Meilan surface-mounted distribution box is.
Q: Can you provide free samples?
A: Of course, but you have to bear the freight.
Q: Is it possible to label the products?
A: Of course, we can label the products. We can also provide design services for you.
