Mcb Wall Mount Distribution Box

This is a classical distribution box, which can be equipped with various modular electrics for terminal power distribution. It is widely used in low-voltage distribution networks for power supply to consumers and commercial buildings.

Core Product Features

• Standard wall-mounted structure, easy to install and fix, suitable for various wall installation scenarios, and a mainstream model in channel circulation

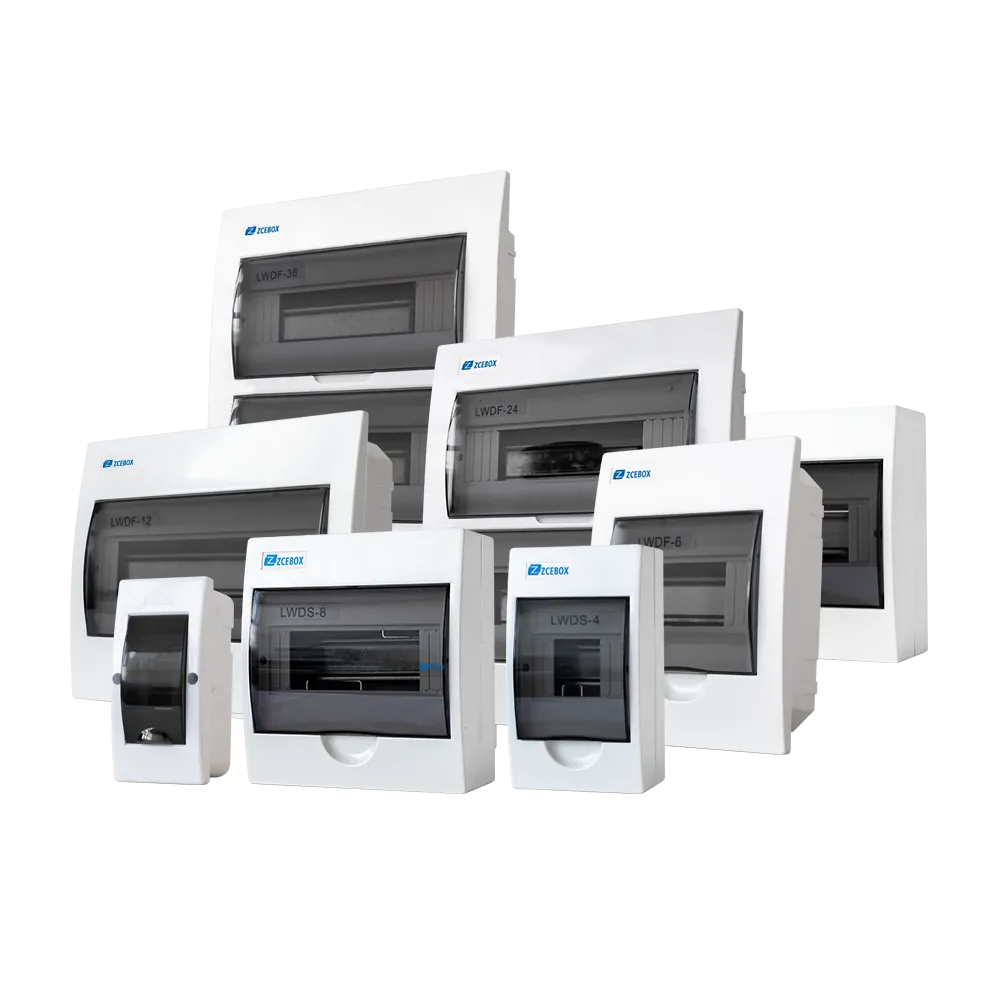

• The full series covers 2 to 36 DIN-module capacities, matching different quantities of MCBs and residual current protection devices on demand

• Made of high-quality ABS enclosure and PC door, the panel features 960℃ flame retardancy for reliable electrical safety

• Equipped with standard DIN rail, fully compatible with mainstream MCB brands on the market, no secondary adaptation required, reducing channel supporting costs

• IP40 protection rating with basic dustproof performance, meeting the requirements of indoor wall-mounted distribution scenarios

• With full certifications including CE, RoHS, ISO9001, IK and HF, the product has strong market compliance for global regional access

• Support customization services such as private labeling, appearance adjustment and configuration optimization to fit different customers' market positioning

Products Description

Wall Mount Type Classification

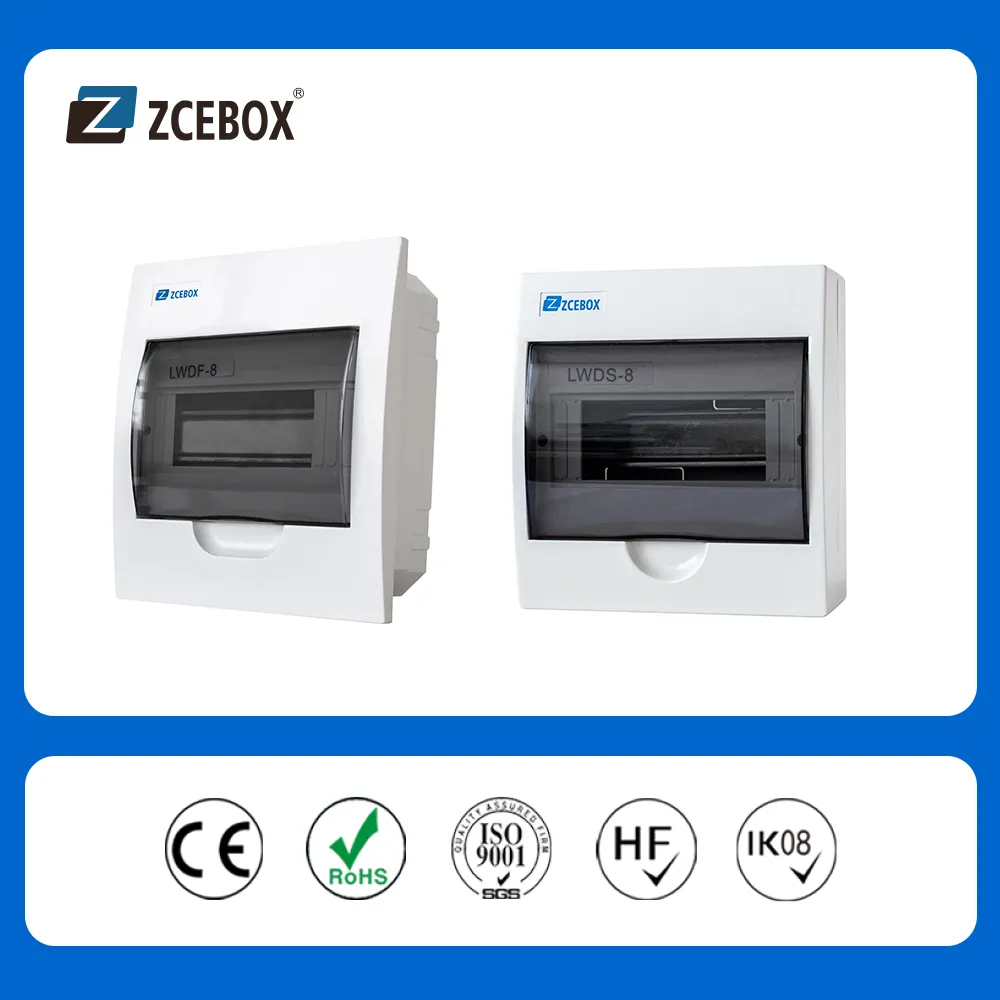

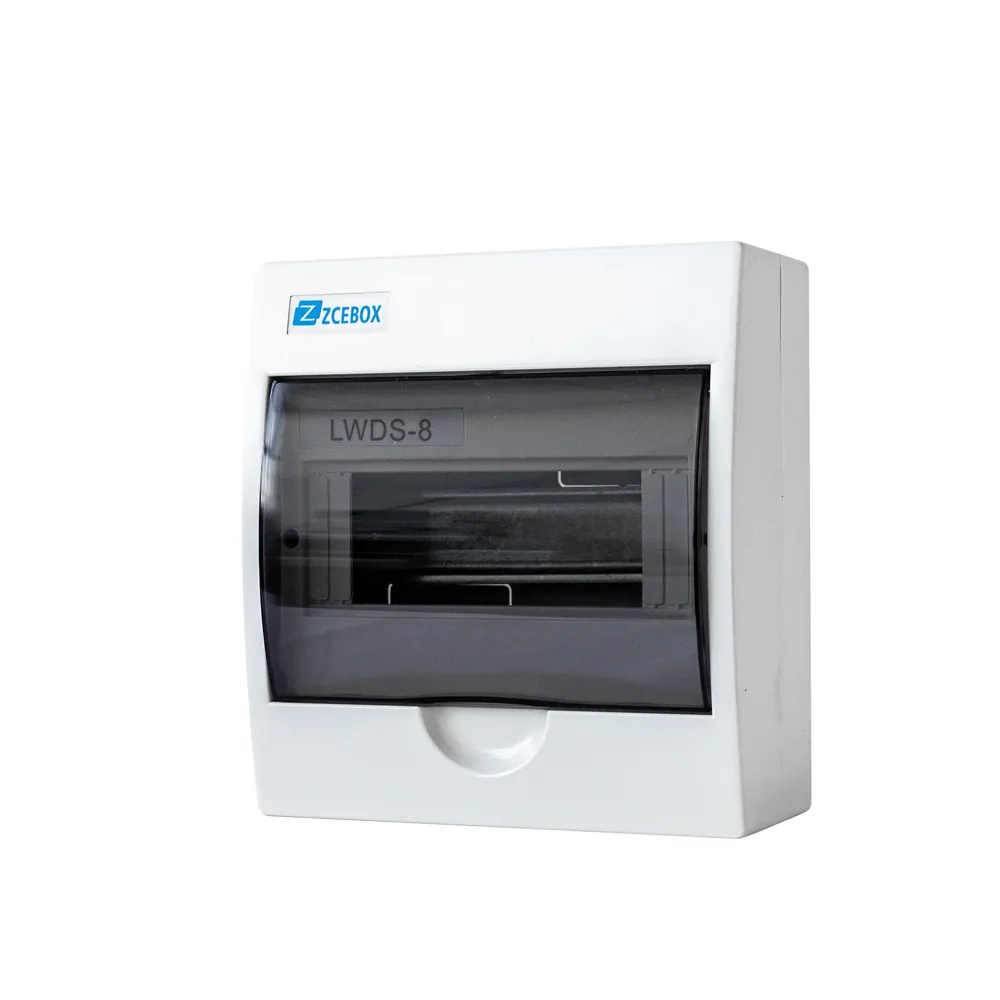

• LWDS surface wall mount model: Exposed wall installation, no wall grooving required, fast construction and easy maintenance, suitable for bulk stocking in renovation projects, after-sales maintenance and other channels

• LWDF flush wall mount model: Recessed wall installation with only the door exposed, neat and integrated appearance, suitable for customized procurement in new real estate, fine decoration supporting and other projects

Product Structure

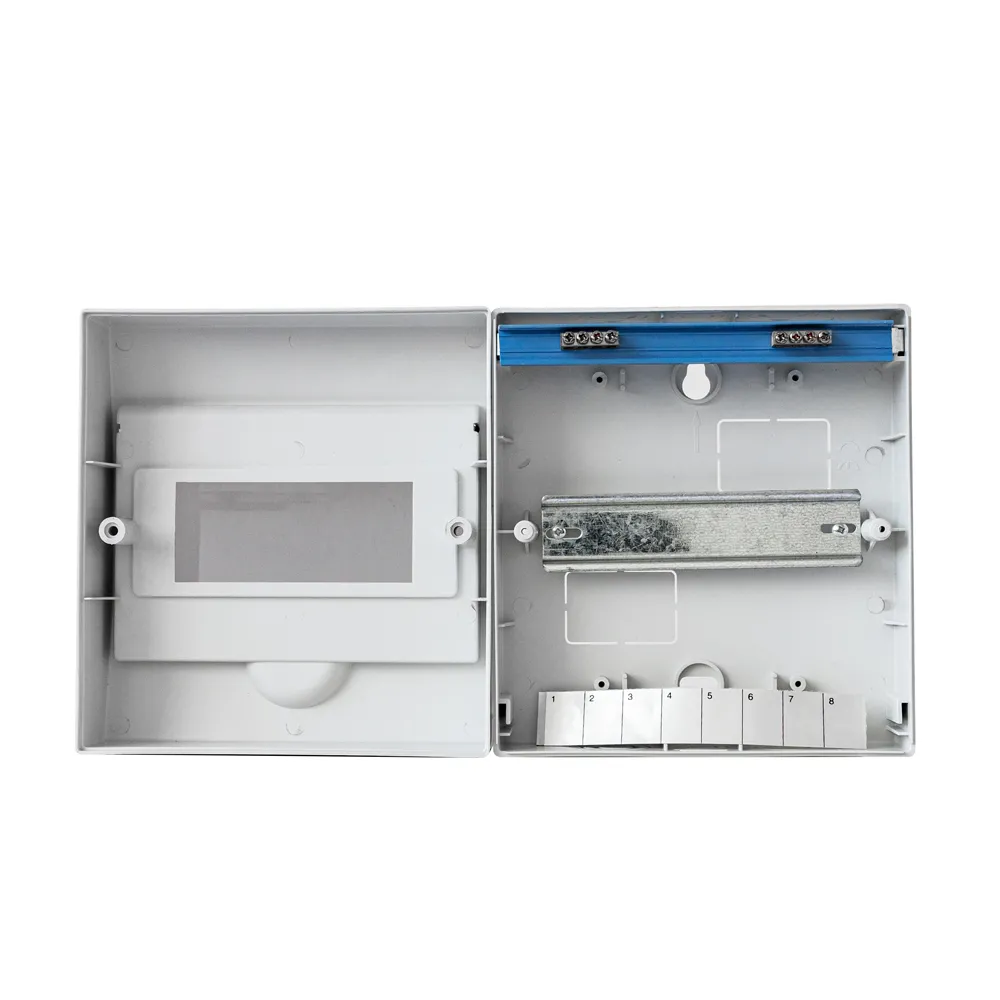

It adopts a standardized modular wall-mounted structure. Core components include dust-proof cable entry, panel, box body, wall mounting screw holes, DIN mounting rail and wiring terminals. Complete and universal accessories ensure high installation and maintenance efficiency, and reduce after-sales supporting costs for channel customers.

OEM & ODM Customization Service

Full-process OEM/ODM customization is supported. We provide multi-dimensional customization for MCB wall mount distribution boxes, including brand logo printing, enclosure and door color customization, appearance structure optimization, exclusive packaging design, internal electrical configuration adjustment and full-chain private labeling. Our in-house R&D team can develop products according to customer requirements or physical samples. All custom solutions go through technical feasibility evaluation and sample confirmation before production.

Supply & Manufacturing Advantages

1. Sufficient Capacity & Fast Delivery: 20 standardized production lines with a monthly output of 220,000 pieces (equal to 25 containers), supporting stable large-batch supply; the fastest delivery for regular orders is 15 days, with flexible scheduling to respond to urgent procurement needs

2. Stable Batch Quality: The whole production follows ISO9001 quality management system. A dedicated QC team strictly inspects each batch before shipment to ensure consistent bulk product quality and reduce customers' quality control and after-sales costs

3. Mature Industry Experience: Long-term in-depth cooperation with well-known brands including Delixi, WEG and Honeywell, with rich OEM/ODM experience and familiarity with access standards and demands of different regional markets

4. Strong R&D Support: In-house technical and R&D team can quickly respond to customization needs, providing full technical support from solution evaluation, sampling to mass production

5. Stable Supply Chain: 140 tons of ABS/PC raw material consumed monthly, 150+ in-house molds, sufficient raw material reserves and production supporting facilities, with stable and controllable delivery cycle

1. Custom Design: The in-house R&D team can develop customized solutions according to customers' product concepts and requirements

2. Sample-based Production: Support product development and mass production based on physical samples provided by customers

3. Shipment Inspection: All batches undergo strict quality inspection by the QC team before delivery to ensure qualified quality

4. Product Materials: Complete e-catalog and technical parameter documents are available via online consultation or email

5. Private Label Service: Full-process OEM/ODM private labeling is provided. Customers can start evaluation by providing brand logo and design drawings
