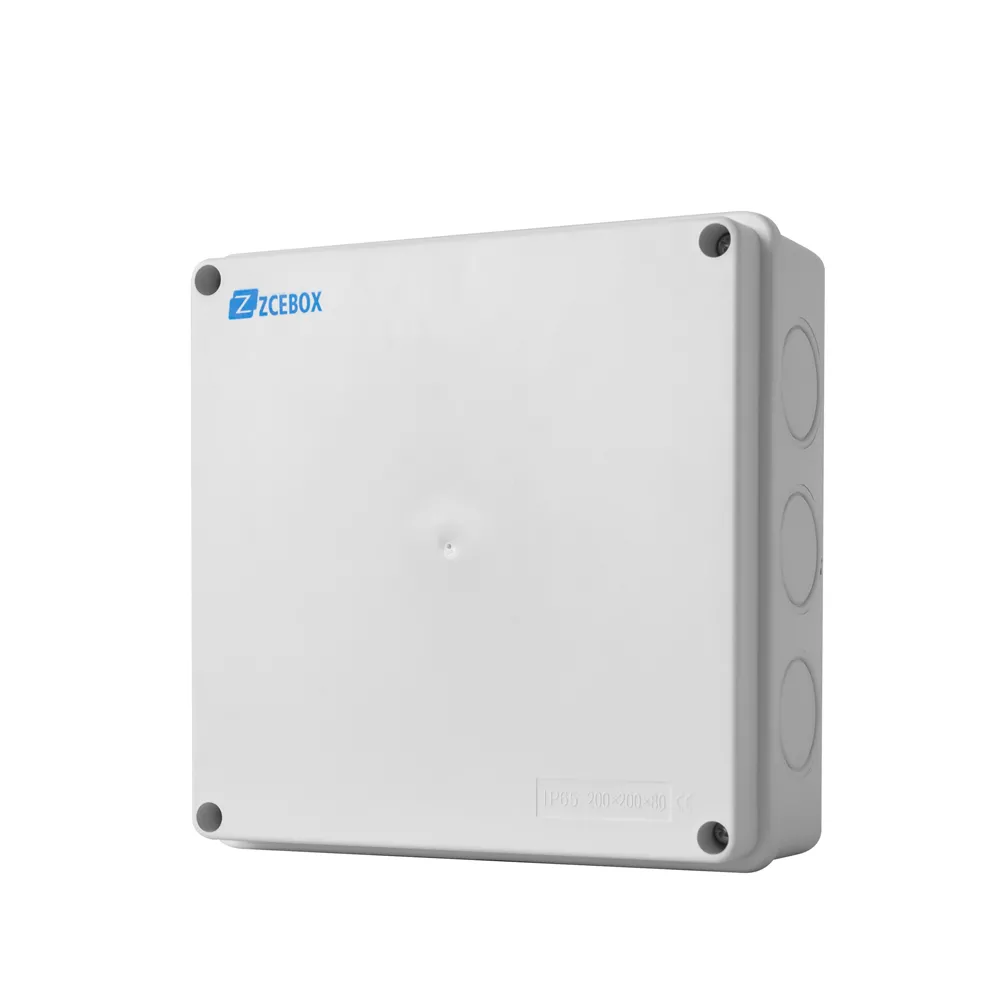

LWBA&BT Plastic Junction Box
Model Number：LWBA 20020080
① Monthly output capacity: 25 containers.
② We cooperate with multiple well-known brands, including Delixi, Weg, and Honeywell.
③ We provide customers with OEM and ODM services.
④ Delivery can be coordinated, with the shortest lead time being 15 days.
Introduction
It is made of materials such as ABS and PS, with an elegant appearance and reliable performance. The cover and bottom are combined with screws. The weight of the plastic enclosure is a quarter of that of the iron enclosure. So the products can be easily transported and installed. All the products have anti-corrosion performance and good insulation performance.
Products Description
| Waterproof junction Box LWBA&LWBT Series | |
| Standard | IEC60529 |
| Approval | CE,RoHS,HF test,IK test,ISO9001 |
| Protection degree | IP65/IP55 |
| Materials | ABS |
| Storage temperature | -40~+75°C |
| Ambient temperature | -5~+40°C,max.95% humidity |
| Model | Sizes（mm） | （P）L*W*H | QTY/CTN | ( C )W*H*D |
| LWBT5050 | 4/25 | 50*50 | 300 | 370*440*460 |
| LWBT8050 | 4/25 | 80*50 | 240 | 445*530*490 |
| LWBT808050 | 7/25 | 80*80*50 | 200 | 710*445*270 |
| LWBT858550 | 7/25 | 85*85*50 | 200 | 710*445*270 |
| LWBT10010070 | 7/25 | 100*100*70 | 100 | 560*560*285 |
| LWBT15015070 | 7/25 | 150*150*70 | 60 | 645*365*400 |
| LWBT15011070 | 10/25 | 150*110*70 | 60 | 630*475*360 |
| LWBT20010070 | 8/25 | 200*100*70 | 60 | 630*420*360 |
| LWBT20015580 | 10/36 | 200*155*80 | 40 | 625*410*405 |
| LWBT20020080 | 12/36 | 200*200*80 | 40 | 820*420*415 |
| LWBT25020080 | 12/36 | 250*200*80 | 40 | 805*520*405 |
| LWBT300250120 | 12/36 | 300*250*120 | 20 | 630*530*630 |
| LWBT400350120 | 16/36 | 400*350*120 | 10 | 720*415*610 |
| Model | Sizes（mm） | （P）L*W*H | QTY/CTN | ( C )W*H*D |
| LWBA5050 | 4/25 | 50*50 | 300 | 375*445*460 |
| LWBA8050 | 4/25 | 80*50 | 240 | 450*535*490 |
| LWBA808050 | 7/25 | 80*80*50 | 200 | 715*450*270 |
| LWBA858550 | 7/25 | 85*85*50 | 200 | 715*450*270 |
| LWBA10010070 | 7/25 | 100*100*70 | 100 | 565*565*285 |
| LWBA15015070 | 7/25 | 150*150*70 | 60 | 630*370*400 |
| LWBA15011070 | 10/25 | 150*110*70 | 60 | 635*480*360 |
| LWBA20010070 | 8/25 | 200*100*70 | 60 | 635*425*360 |
| LWBA20015580 | 10/36 | 200*155*80 | 40 | 630*415*405 |
| LWBA20020080 | 12/36 | 200*200*80 | 40 | 825*425*415 |
| LWBA25020080 | 12/36 | 250*200*80 | 40 | 810*525*405 |
| LWBA300250120 | 12/36 | 300*250*120 | 20 | 630*530*630 |
| LWBA400350120 | 16/36 | 400*350*120 | 10 | 720*415*610 |
About Us
Why Choose Us
Certifications
Packaging&Shipping
Our Exhibition
Installation Case
Customize products for your project!
Get Questions
Frequently Asked Questions
Q: What is the difference between LWBA and LWBT?
A: BA does not have a stopper, BT has a stopper
Q: Can you do OEM and ODM?
A: Yes, both OEM and ODM are acceptable. The material, color, and style can be customized. We will advise you of the minimum quantity after discussion.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which certificate do you have?
A: We have CE, CB, RoHS, HF, and ISO9001 certifications.
Q: Do you have the test and audit service?
A: Yes, we can assist in obtaining the designated test reports for the products and the designated factory audit reports.
