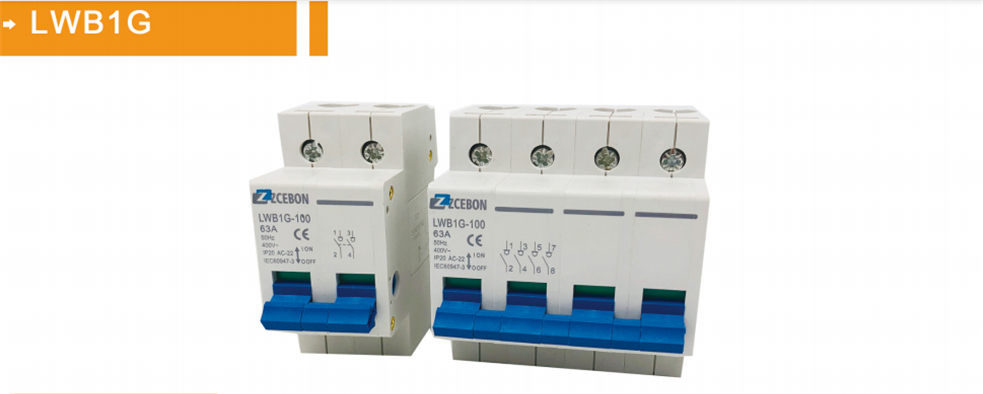

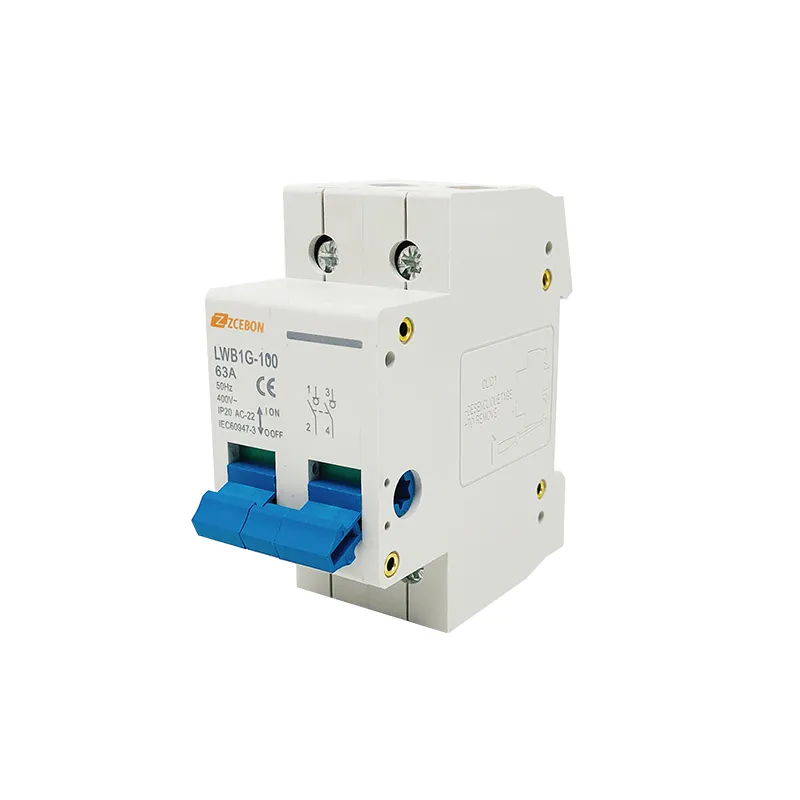

Circuit Breaker

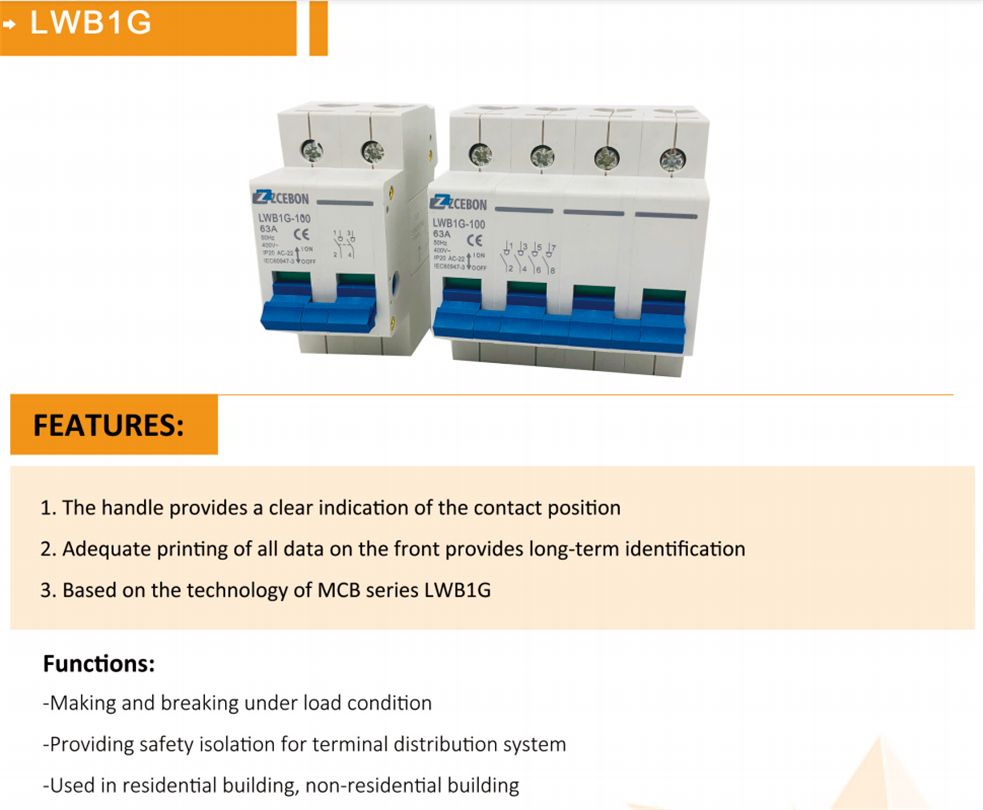

FEATURES:

1. The handle provides a clear indication of the contact position

2. Adequate printing of all data on the front provides long-term identification

3. Based on the technology of MCB series LWB1G

Functions:

-Making and breaking under load condition

-Providing safety isolation for terminal distribution system

-Used in residential building, non-residential building

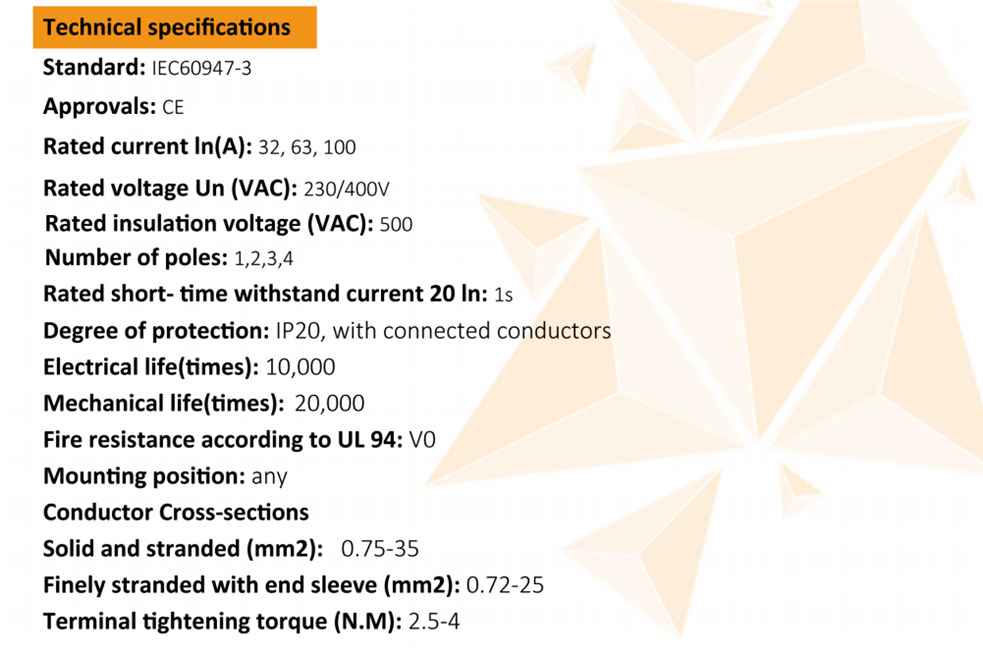

Technical specifications

Standard: IEC60947-3

Approvals: CE

Rated current In(A): 32, 63, 100

Rated voltage Un (VAC): 230/400V

Rated insulation voltage (VAC): 500

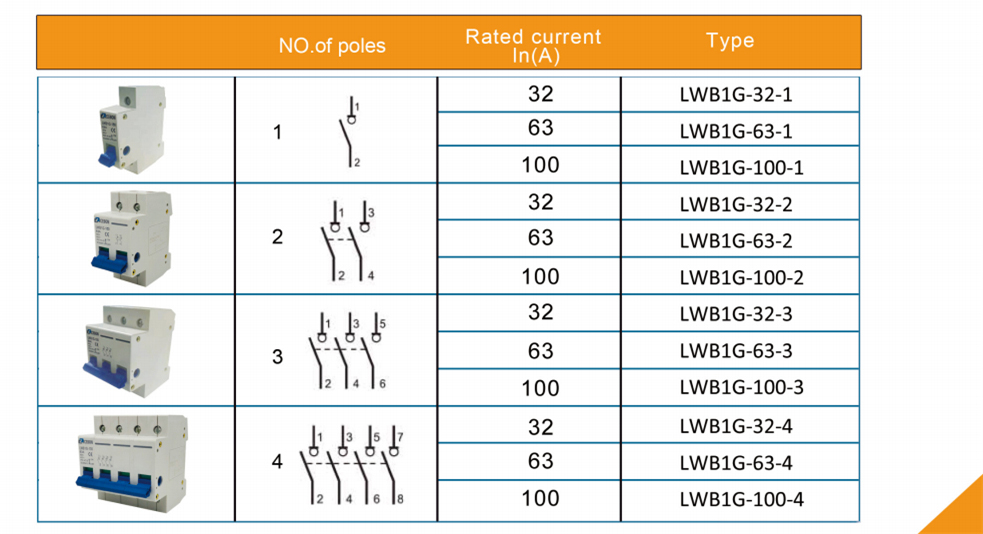

Number of poles: 1,2,3,4

Rated short- time withstand current 20 In: 1s

Degree of protection: IP20, with connected conductors

Electrical life(times): 10,000

Mechanical life(times): 20,000

Fire resistance according to UL 94: V0

Mounting position: any

Conductor Cross-sectionsSolid and stranded (mm2): 0.75-35

Finely stranded with end sleeve (mm2): 0.72-25

Terminal tightening torque (N.M): 2.5-4

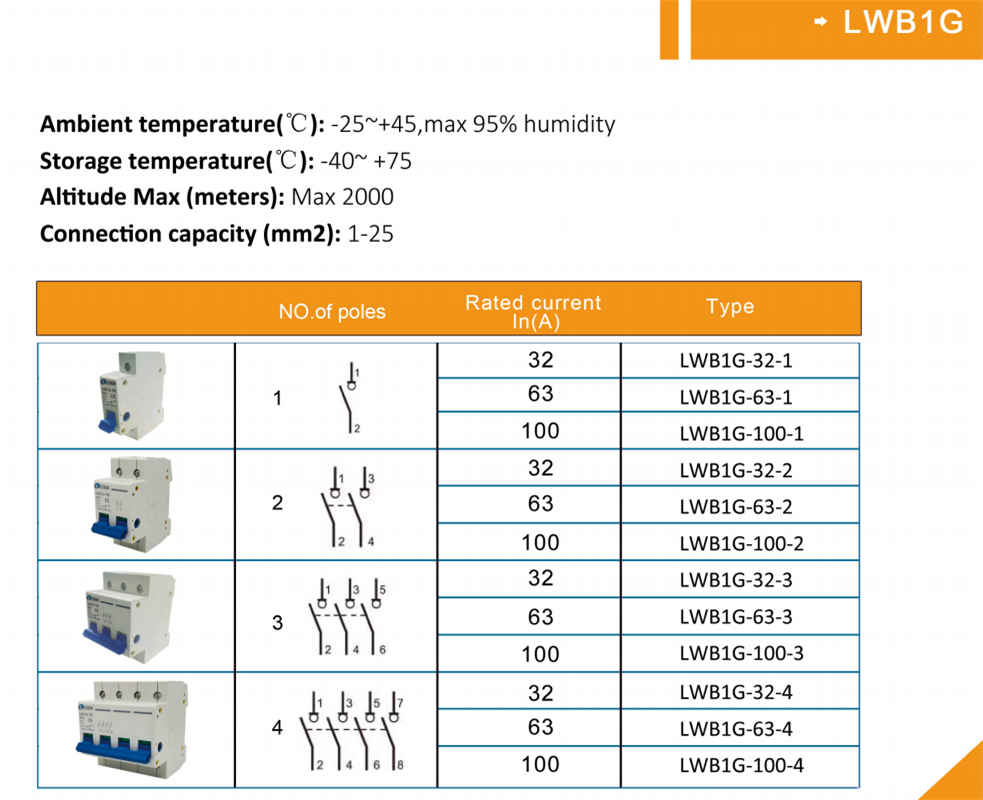

Ambient temperature(C): -25~+45,max 95% humidity

Storage temperature(℃):-40~+75

Altitude Max (meters): Max 2000

Connection capacity (mm2): 1-25
